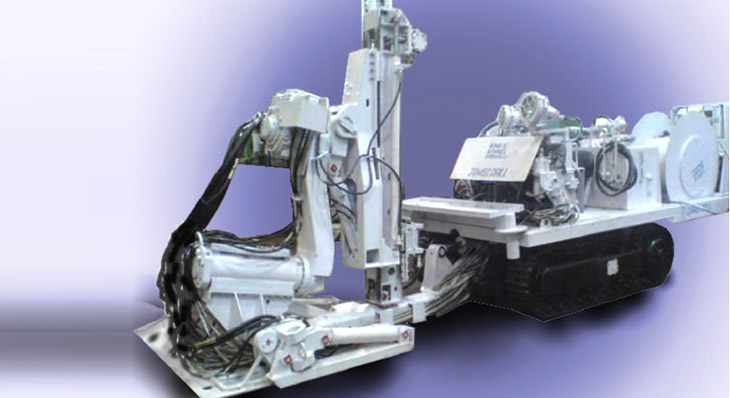

APHMEL manufactures self propelled, crawler mounted Jumbo drill machines, suitable for working in Gassy mines and designed for drilling long holes for caving in thick seam in Blasting gallery method of Coal Mining.
The Machine is capable of drilling holes in roof, sides and on face .
The machine can be dismantled into components. The approximate weight of any single piece is 2 Tons and dimensions are 3.6 mt [L] x 2.1 mt [H]
The machine will operate in a true gradient of 1 in 4 for climbing and a cross gradient of 1 in 5
The pump is guaranteed for a minimum working of 5000 Hrs.

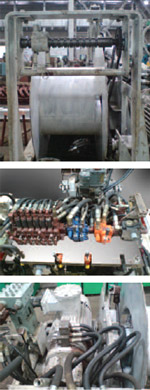

Hydraulically operated cable reeling arrangement.
The Machine is manoeurable in a gallery of 3.2 mtrs having diagonal distance of 5 mtrs in the junction.
