We manufacture Direct Haulages, Endless Haulages, Tugger Haulages, Scraper Haulages, and Man riding haulages. APHMEL make Haulers are of robust design with compact construction and suitable for both underground and surface conditions.

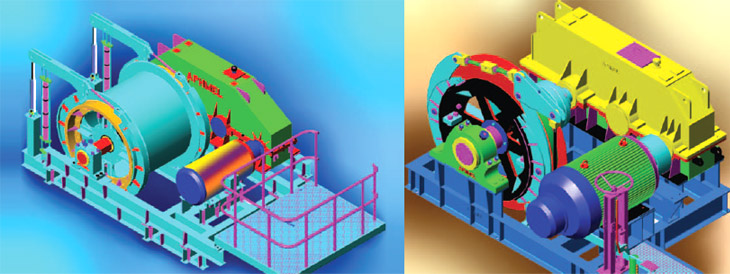

Direct Hauler
Rope drum driven by electric motor through two stage reduction gear box.
Post type brake system provided with screw down piller for locking the system.
Caliper type brake with Hydraulic cylinders are introduced to 150 HP and 87 HP Haulers for man riding application.
Technical Speci? cation of Direct Haulers
| Rating |
50 HP |
60 HP |
87 HP |
150 HP |
| Drum Diameter |
440/500 mm |
950 mm |
1400 mm |
1600 mm |
| Width of drum |
480/700 mm |
950 mm |
915 mm |
1200 mm |
| Rope Dia |
22 mm |
22 mm |
25mm & 22 mm |
25 mm |
| Rope capacity |
450 mts /650 mts |
900 mts |
1249 mts for 25 mm
1580 for 22 mm |
1500 mts |
| Rope speed |
4.2 kmph |
6 to 7 kmph |
6.7 kmph |
8 kmph |
| Input speed |
1480 rpm |
750 rpm |
720 rpm |
480 rpm |
| Rope pull |
2500 kgs |
2200 kgs |
2900 kgs |
5000 kgs |
| Gear box type |
3 stage bevel/ helical |
2 stage Herring bone/Spur |
2 stage Herring bone/Spur |
2 stage Herring bone/Spur |
| Gear box ratio |
40 : 1 |
25 : 1 |
30 : 1 |
17 : 1 |
| Centre distance |
--- |
1422 mm |
1512 mm |
1910 mm |
| Factor of safety |
2.75 |
2.75 |
2.75 |
2.75 |
Endless Hauler
The rope of Hauler connects to coal tubs in different directions to facilitate the tubs to travel both the directions in less gradient mines.
| Rating |
40 HP |
50 HP |
60 HP |
| Clifton Wheel Diameter |
1372 mm |
1200 mm |
1140 mm |
| Width of Clifton Wheel |
136 mm |
70 mm |
70 mm |
| Rope Diameter |
19 mm |
19 mm |
22 mm |
| Rope Speed |
0.89 m/sec |
0.61-1 m/sec |
0.61-1 m/sec |
| Input speed |
750 RPM |
960 RPM |
960 RPM |
| Gear box Type |
Herrringbone |
Double Heli-cal/spur |
Double Helical/spur |
| Gear Box Ratio |
60.8 : 1 |
20 : 1 |
20 : 1 |
| Centre Distance |
1293 mm |
1140 mm |
1140 mm |
| Gear box ratio |
40 : 1 |
25 : 1 |
30 : 1 |
| Centre distance |
--- |
1422 mm |
1512 mm |
Tugger Hauler & Double drum Scraper Hauler
The rope drum driven by electric motor through internal & planetary gear system.
Technical Speci? cation
50 HP Power, 1.8 m/sec Rope speed, 2500 Kgs Rope pull and 600 mts of 19 mm rope Drum capacity
