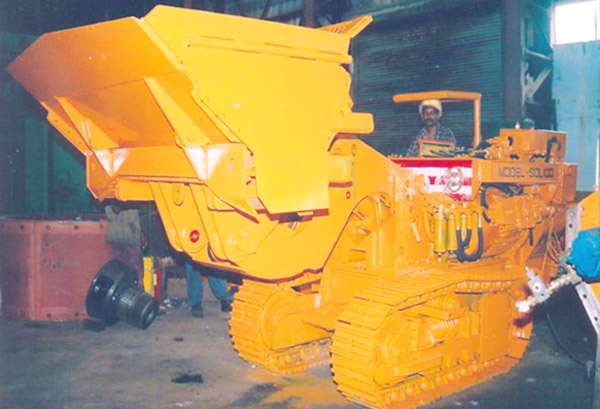

Technical Specification for Standard Height Side Discharge Loader
Model: SDL100 |
| Bucket Width |
: |
1800 mm |
| Bucket Height |
: |
1190 mm |
| Clearance Height of Bucket in Roll back position |
: |
1330 mm |
| Width over Track |
: |
1448 mm |
| Maximum Height Bucket level (max. head room) |
: |
3715 mm |
| Max.Con. Dicharge Height |
: |
2720 mm |
| Mini.con. Discharge Height |
: |
385 mm |
| Overall Height Over Canopy |
: |
1850 to 2150 mm |
| Overall Length Bucket Down |
: |
4836 mm |
| Overall Length Bucket Roll Back |
: |
4496 mm |
| Digging Depth |
: |
203 mm |
| Ground Clearance |
: |
190 mm |
| Track Centre |
: |
1429 mm |
| Track Width |
: |
330 mm |
| Bucket Capacity (Max.Load) |
: |
2032 mm |
| Bucket Capacity (Volume) |
: |
1 cu.m |
| Machine Speed |
: |
2.59 km/hr |
| Breakout Force of Machine |
: |
2722 kg. |
| Electric Motor |
: |
55kw; 3 Phase, 50 Hz, 550V.Induction
Flame Proof Motor. |
