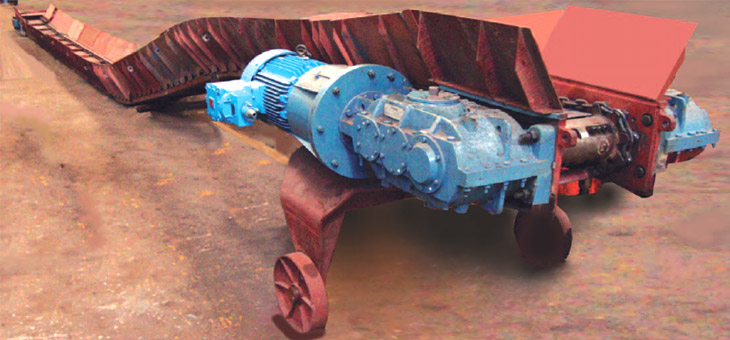

The chain conveyors are of robust design with compact construction comprising of components which are amply proportioned to meet severe conditions encountered in such services. The construction is modular and addition of troughs can be easily carried out.
Salient Features
- The design of Drive head is robust and sturdy to withstand impact of coal lumps.
- High quality chains are provided for longer life of machine and to withstand shock loads during working.
- Sprocket and tail end drum are made out of cast steel suitably treated.
- Pinions, gears and shafts are made of high strength materials and properly heat treated.
- The gear boxes are conveniently mounted to facilitate maintenance.
- Wear resistance plates (Manganese Steel) are provided in the troughs.
- Flights made out of high quality forged steel.
- Spill plates on either side of the troughs are provided as per requirement.
- Motor is suitable for operation in humid and dust laden atmosphere of underground coal mines.
Technical Speci? cation
| Particulars |
Light Duty Chain Conveyor |
Medium Duty Chain Conveyor |
| Capacity |
100 TPH |
200 TPH |
| Chain Speed |
0.8 m/sec |
0.8 m/sec |
| Length |
100 mts or multiples of 2 m |
60 mts or multiples of 1.5 m |
| Power |
2 x 15 KW |
2 x 45 KW |
| Drive unit mounting |
Skid type |
Trolley type |
| Drive unit mounting |
Skid type |
Trolley type |
| Gear box |
Wall mounted, double reductionand
horizontally split type |
Wall mounted, double reductionand
horizontally split type |
